University of Isfahan – Faculty of Science – Isfahan

1976/77 Higher Education Project for Nezam Amery – Kamooneh – Khosrovi

Isfahan – satellite image – please note: Kuh-e Sofeh instead of Kuh-e Donbeh

00 – Cover sheet of the drawing set – site layout of the science department of the university of Isfahan

01 – Ground floor plan – access areas to the buildings – covered plazas and outdoor class areas – persian garden

02 – First floor plan and longitudinal section of the science buildings

03 – Second floor plan and sketches of elevations facing the garden

04 – Third floor plan and sketches of elevations facing the road side

05 – Structural study of one of the 6 buildings

06 – Ground floor plan – Study and elaboration of the covered outdoor space of one of 6 buildings

07 – First floor plan – Study of facility- and facility-service areas

08 – Second floor plan – Study of facility and facility service ares

Sheet 09 and sheet 10 are missing in the archive

11 – Study of sections and an elevation of one of the 6 buildings

12 – Study of Elevations and sections of one of the 6 connected buildings

More drawings

Roof plan

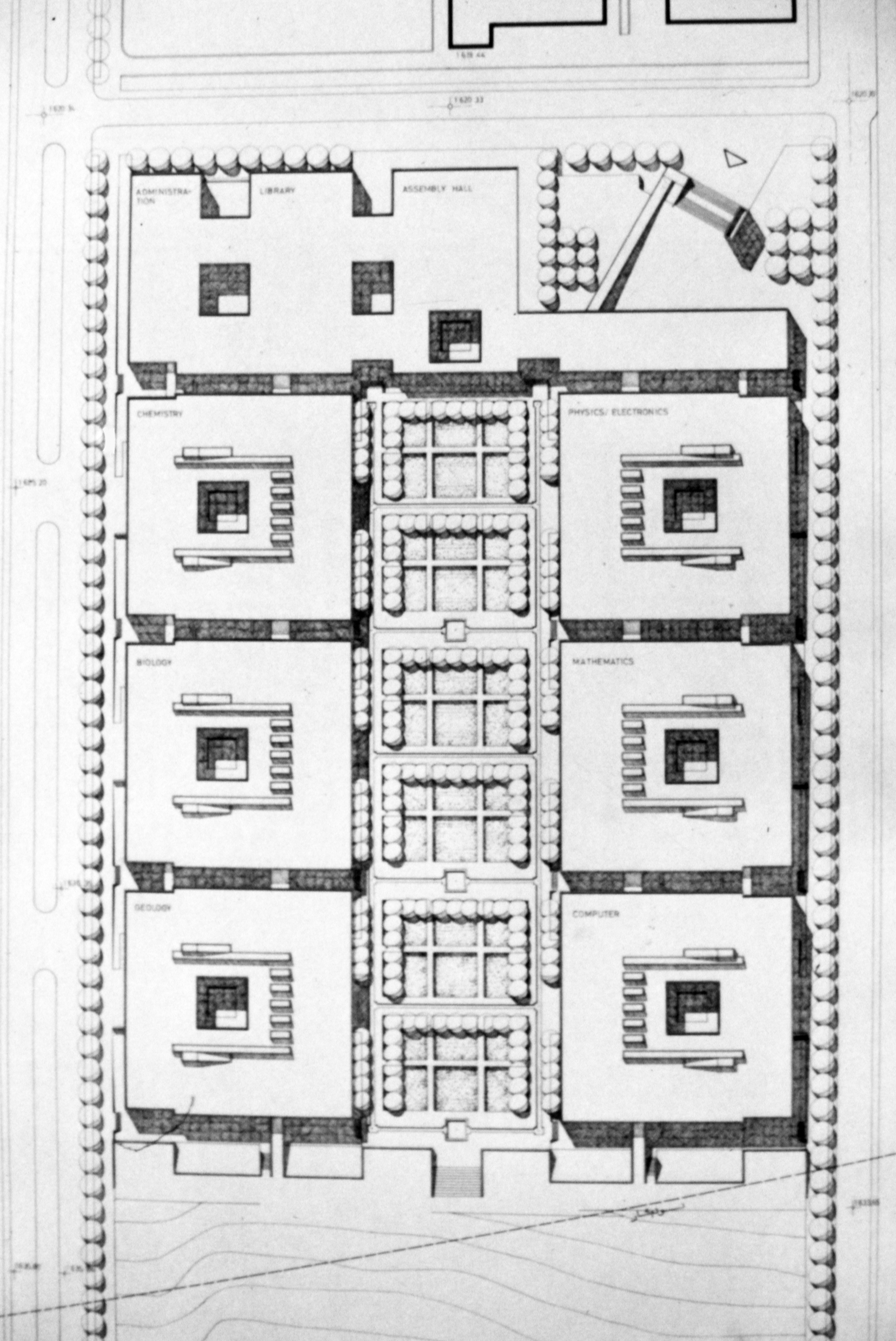

Site layout
